Platin HTX Hub
Platin HTX WiSA Hub + Remote
Delivery: 1-4 working days
A perfect, discrete, all-in-one solution for our active wireless speakers.
The HTX Hub is a versatile and comprehensive audio system for both stereo and multichannel users. It offers immersive Dolby Atmos decoding and features multiple wired inputs. Additionally, it includes built-in network streaming and a powerful DSP core that supports individual channel setup, DSP EQ for each channel, and multichannel room correction.
Already own a pair of our active speakers and are part of our customer base? Choose the Buchardt Family price. Looking to purchase the Platin HTX along with a pair of active speakers? Select the bundle option with the product of your choice.
Note : Buchardt Family - If you choose the Buchardt Family price and you’re not in our customer database, the order will be canceled.
Interested in adding the Zen Mic? You can find it here. Works for both Platin Hubs & Primare SC15 MKII.
| WIRELESS INPUTS | WIRED INPUTS |
|---|---|
| Spotify Connect | 1 x Rca Analog |
| Tidal Connect | 3 x HDMI 2.0b |
| Apple Airplay2 | 2 x TOSlink optical |
| Chromecast Built-in | 1 x Ethernet network input |
| Roon Ready (Under certification process) | 1 x USB-A (service only) |
| DLNA UpNP | |
| Bluetooth 5.2 | |
| WIRELESS OUTPUTS : | WIRED OUTPUTS: |
| Wisa Wireless 8 discrete output channels, digital 24bits/96kHz | 1 x HDMI 2.0b with ARC/eARC + OSD |
| BUCHARDT APP FEATURES: | OTHERS: |
| Room Correction with the "Zen microphone" or iPhones | Aluminium RF Remote |
| Advanced Manuel EQ | Size : H:W:D 35 X 208 X 152 mm |
| WiSA setup | EU / US / UK Adapter Included |
| App Based Remote | POWER: DC 5V/3A 1.35mm |
| Firmware updates | WiFi: 802.11/b/g/n/AC |
Description

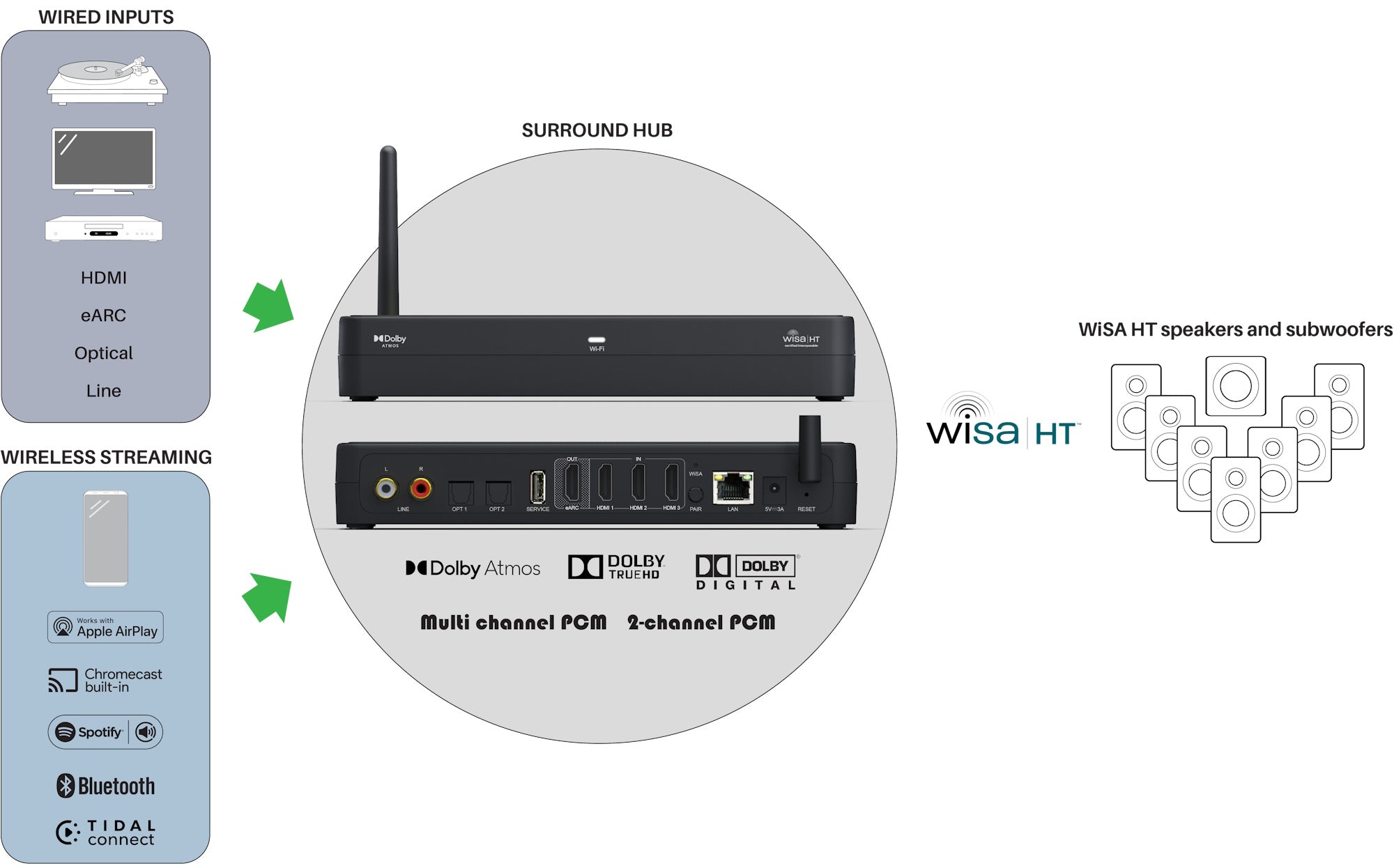

Platin HTX Surround Hub is a digital, lossless surround system with everything inside, that you expect from a traditional AV-receiver. It contains HDMI switching, decoding, streaming and various audio inputs. It comes with a 2-way RF smart-remote with full control and feedback, allowing you to hide away the Surround Hub. It will act as a bridge between most audio sources and WiSA HT enabled speakers for playback.
The HTX Hub will connect with any WiSA HT certified speaker in the market. Since WiSA HT protocol is a lossless transport, working up to 24bits/96kHz, the device takes advantage of the digital nature of the transport enabling a package of internal digital signal processing (DSP). The DSP is lossless at 32bits/96kHz, to ensure no degradation of audio quality is introduced.
It is capable of handling decoding of immersive surround for Dolby Atmos 5.1.2. It supports upmixing any content to multichannel playback, utilizing all the speaker channels connected.
Features
The HTX hub also features an accessible DSP-core, for which we have a system in the works, that will allow users to access it freely and adapt the system to personal preference. It comes with automated features and manual features, that allows anything from out-of-the-box easy setup up to expert level of manual adaptation. Your skill level is the limit of how well you can get the system to work.
Cabled ethernet and wi-fi network
It offers both Wi-Fi and ethernet connection for network access. The device will automatically prioritize cabled network connection over Wi-Fi in case both are used. Using ethernet connection is recommended where possible, as it ensures the most stable streaming experience.
Smart-remote
The system comes with a delicate aluminum 2-way RF smart remote, which essentially replaces the need for an on-product display and allows you to hide away the HTX Hub. The remote has live visual indications for the essential functions – and it enables the on-screen display of the device. It also allows you to control the playback of your streaming.
HDMI
It comes with 3pcs HDMI 2.0b inputs and 1pc HDMI (eARC/ARC) output. This allows you to connect your TV and up to 3 HDMI sources directly with the HTX Hub. The desired HDMI input will automatically be chosen and shown on your TV. You can adjust the volume from your TV remote, eliminating the need for manually operating the device for TV playback. The HTX Hub supports 2-channel and multichannel PCM audio, as well as any surround format from Dolby.
Analog line input
It has a stereo analog line input with phono connectors. The analog input circuitry of the HTX Hub is using a fully balanced Analog to Digital converter, converting the analog signal to 24bits/96kHz directly at the input sockets – allowing as pure a path as possible. After converted to digital PCM audio, the signal is treated with equal respect as the digital inputs. The line input supports voltages up to 2.5Vrms. This limitation in input voltage is there to optimize the performance of the analog playback.
WiSA wireless output:
- 8 discrete output channels, digital 24bits/96kHz lossless broadcast
- Multiple speakers can connect to one channel, up to 16 speakers supported
- Studio grade synchronization, <1 sample drift
- 6ms latency at 96kHz
Decoding and playback:
- Dolby Atmos, Dolby True HD, Dolby Digital 5.1/7.1
- Multichannel PCM, 2-channel PCM
Upmixing:
- Dolby Movie, Dolby Music, Dolby Night mode
DSP functions:
- Room correction and Manual EQ
- Flexible and customizable bass management system
- Speaker distance setup
- Speaker level setup
- Lip-sync adjustment per input
Speaker layout formats:
- 2.0/2.1
- 3.0/3.1/3.0.2/3.1.2
- 4.0/4.1/4.0.2/4.1.2
- 5.0/5.1/5.0.2/5.1.2
- 7.0/7.1
Setup Guide
Watch the video to see a setup guide on the Hub with our Active Speakers by Mads Buchardt
ROOM CORRECTION
We are so stoked about this! A thorough engineered room correction that will surprise you in a very positive way, easy and simple to use, yet fixes what you want, without the typical artifacts we sadly see from most room corrections on the market today. Mainly it’s designed to help you with room modes (bass issues caused by the room), it will adapt the bass response to your room, and the speakers' placement in the room.
If you plan to use our speakers in a normal room, where optimal speaker placement and huge bass traps is not an option, this might be the biggest upgrade in terms of sound quality improvements you have done, no joke!
The technical explanation is a huge topic that can be found under our active speakers
MEET THE BUCHARDT TRICKED OUT RF REMOTE
Remotes should make your life easier, not harder! This remote will automatically turn on the moment you pick it up. It also acts as your display for the hub, showing what input you have selected and the volume.
Not in the same room? No problem. You'll be able to adjust the volume even if you're on the other side of the house!
